Finally finished! Here is board number 3. I actually finished it at the end of last year, but with a new little baby in the mix i didn't have time to post. My wife is very happy and i am sure she will enjoy it even more when she has the chance to get it in the water!
It is a big improvement over the first two boards i made weighing in at 3.8 kgs or 8.4 lbs including glassed on fins.
Saturday, January 28, 2012
Monday, August 23, 2010
Friday, February 5, 2010
Board No. 2!

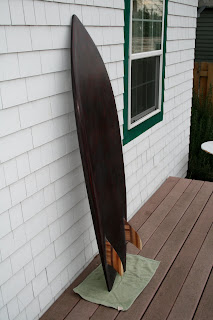

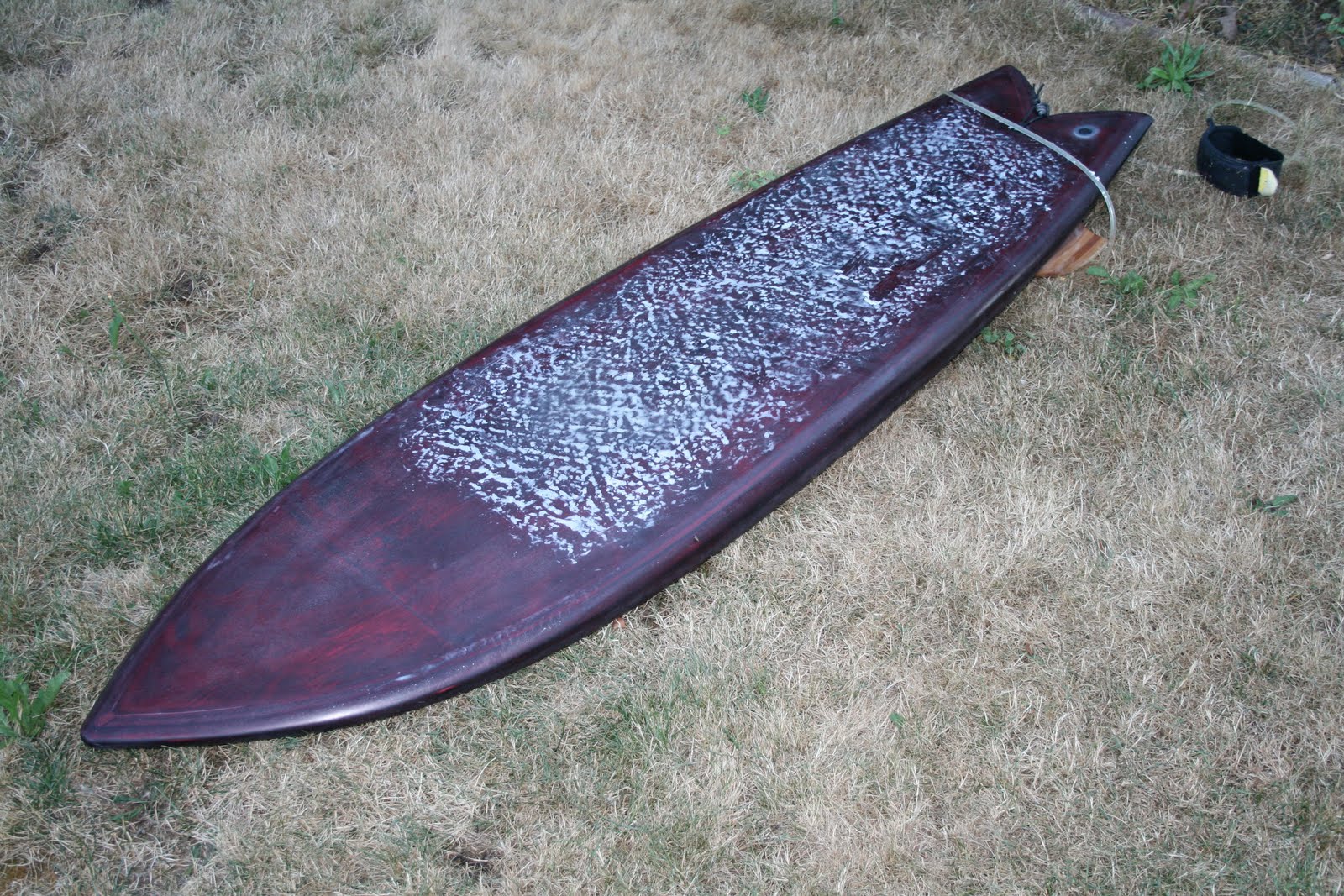

Here are some pictures of my second board. I am happy with the result, however the true test will be in the water! Here is a brief description of the construction:
The rails are a laminate of 1/8th of an inch poplar ply, 1/4 inch balsa and 1/4 inch cork.
The top deck is 1/8 inch birch ply and the internal structure is Balsa.
I used a dark stain on the wood before glassing, i am not sure if i would do this again as the dark color tends to show all of the imperfections in the glass. I am using resin research epoxy glass and i am still figuring out how to get the best results, however i was more efficient this time, using a lot less resin.
The fins are cut from an uncompressed snowboard core, i shaped and glassed them before glassing them on to the board.
I also got my hands on some goretex valves which means the valve can stay in and doesn't need to be removed.
The board is considerably lighter than No. 1, and more inline with a standard foam board.
The rails are a laminate of 1/8th of an inch poplar ply, 1/4 inch balsa and 1/4 inch cork.
The top deck is 1/8 inch birch ply and the internal structure is Balsa.
I used a dark stain on the wood before glassing, i am not sure if i would do this again as the dark color tends to show all of the imperfections in the glass. I am using resin research epoxy glass and i am still figuring out how to get the best results, however i was more efficient this time, using a lot less resin.

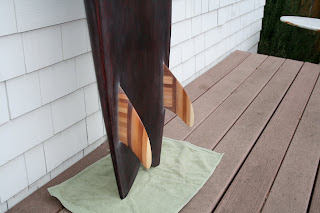

The fins are cut from an uncompressed snowboard core, i shaped and glassed them before glassing them on to the board.
I also got my hands on some goretex valves which means the valve can stay in and doesn't need to be removed.
The board is considerably lighter than No. 1, and more inline with a standard foam board.
Tuesday, August 11, 2009
Finished!!!
Saturday, September 13, 2008
Sunday, April 6, 2008
Progress... I think!
Here are the latest pictures. In no particular order.
Here is the bottom boards being glued together. 4 boards at a 1/4 inch thick, it was a little tricky to get them flat and lined up!
Here is the frame sitting on the original rail mold.
Another one of the frame.
The rails being glued up into the shape of the board. Clamps and duct tape!
The tail shape.
I love clamps!
